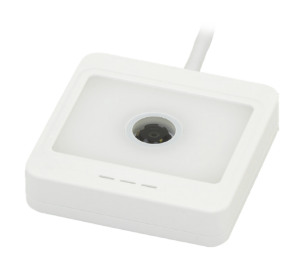

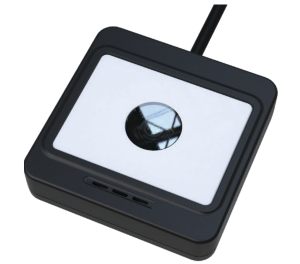

M-12

The M-12 is a compact fixed mount barcode scanner engineered for high-performance scanning in demanding environments. Powered by a high-speed global shutter sensor with up to 120 fps scanning and an ultra wide-angle optical system, the M-12 effortlessly captures 1D, 2D, and OCR codes, even from mobile screens and under direct sunlight.

Designed for seamless integration into kiosks, payment terminals, counters, and self-service systems, the M-12 combines industrial-grade durability with outstanding reading performance in a sleek, low-profile form factor.

• High speed 2D CMOS imager - omnidirectionally scans up to 120 fps
• Rapidly scans and decodes 1D, 2D and OCR fonts including off of mobile device screens
• Incorporates an Opticon scan engine for improved scanning of low quality barcodes and providing exceptional motion tolerance for moving applications
• Ultra wide-angle optical system can read standard QR codes at close range, as well as wide barcodes and large QR codes from approximately 40–45 mm away
• Smart design fits any desk, workspace or countertop
• Trigger modes: manual and auto-trigger
• Can easily be embedded into a fixed mount scanning solution
• IP65-rated dust and drip-proof, and works from -20°C to 60°C for versatile use
• Sunlight-resistant optical filter and industrial CMOS sensor enable readings up to 120,000 Lux
• Data editing program function captures up to 16 codes on multiple images simultaneously
• Space-saving size makes it ideal for kiosks and payment terminals
• Communication interfaces: USB (HID, COM), RS232
• Backed by a two year warranty
