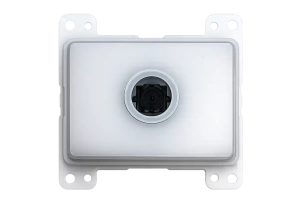

M-12M

The M-12M combines high-speed barcode reading with enhanced illumination flexibility for OEM, kiosk, and embedded applications. Equipped with a global shutter sensor capable of scanning at up to 120 fps and an ultra wide-angle optical system, the M-12M effortlessly captures 1D, 2D, and OCR codes from printed labels, mobile screens, and moving objects. Its compact design, sunlight-resistant optics, and customizable lighting system make it an ideal choice for applications that demand both performance and integration flexibility.

Product Highlights Include:

• High-speed 2D CMOS imager with omnidirectional scanning up to 120 fps
• Rapidly reads and decodes 1D, 2D, and OCR fonts, including codes displayed on mobile devices
• Integrated Opticon scan engine delivers excellent performance on low-quality, damaged, or moving barcodes
• Ultra wide-angle optical system reads standard QR codes at close range and larger codes from approximately 40–45 mm away
• Designed for easy integration into fixed mount and embedded scanning solutions
• Sunlight-resistant optical filter and industrial CMOS sensor enable reliable operation in environments up to 120,000 Lux
• Compact form factor fits seamlessly into kiosks, payment terminals, and custom OEM equipment
• Uniform illumination design reduces glare and brightness variations across the scanning area for improved user comfort and scanning consistency
• Full-color indicator and floodlight LED system with four high-visibility surface-emitting LEDs for customizable status indication and illumination
• Supports both manual trigger and auto-trigger modes
• Advanced data editing functionality captures up to 16 codes across multiple images simultaneously
• Communication interfaces: USB (HID, COM) and RS232
• Backed by a two year warranty

Looking for other integration options?

If the M-12M offers the scanning performance you need, but your application requires a different form factor or integration approach. Opticon also offers the M-12 and MDI-12. Together, these models provide a versatile family of fixed mount and OEM scanners designed to meet a wide variety of kiosk, payment, OEM, and embedded scanning requirements.
